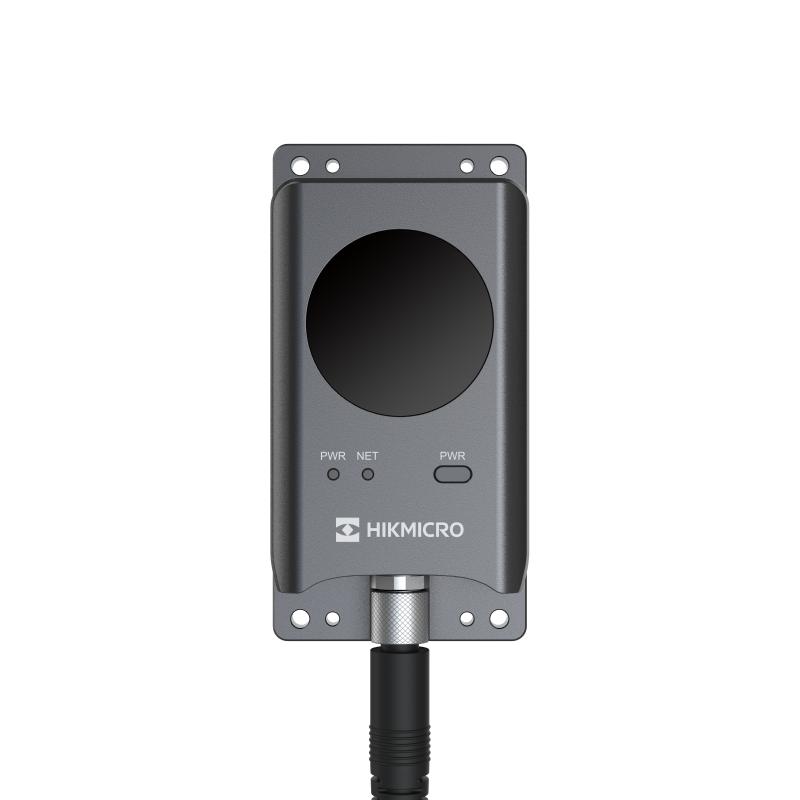

Cube Cameras

Specifications of HIK Cube Camera

Product Model

HM-TD3117T-1/Q

HM-TD3117T-2/Q

Thermal Module

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Pixel Interval

17 μm

Response Waveband

8 μm to 14 μm

NETD

Less than 40 mK (@ 25 °C,F#=1.1)

IFOV

13.08 mrad

8.95 mrad

Field of View

114° × 89° (H × V)

90° × 65.3° (H × V)

Min. Focusing Distance

0.1 m

Aperture

F1.2

F1.1

Digital Zoom

×2, ×4

Focal Length

1.3 mm

1.9 mm

Superscript

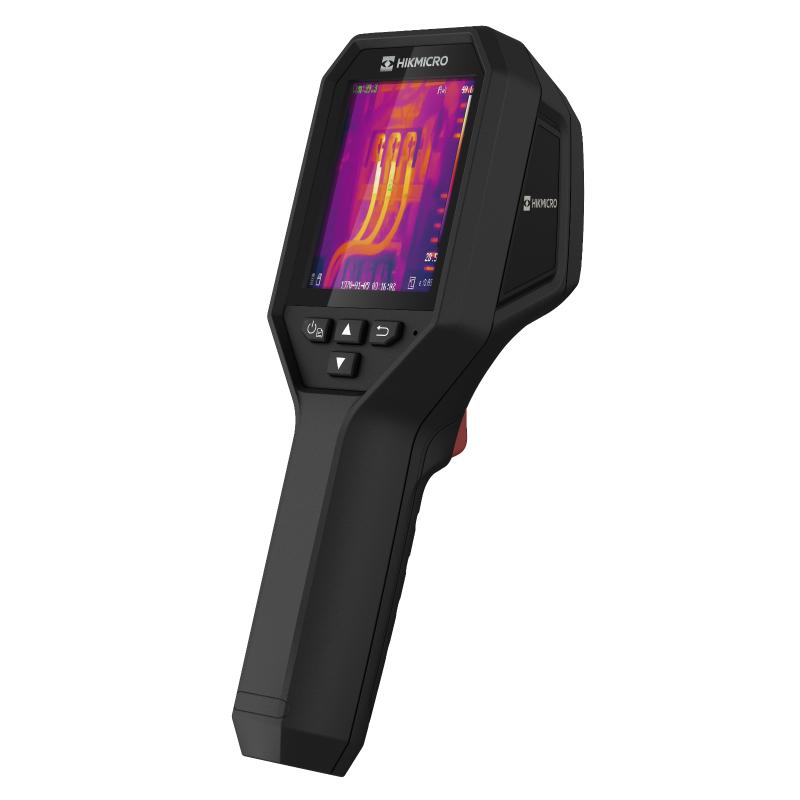

B Series

High Image Quality

A highly sensitive VOx detector (NETD < 40 mK) provides a distinct thermal vision of the target.

Multiple Image Modes

Thermal, Fusion, PIP and Optical modes to suit your preferred.

Quick Temperature Measurement

Full screen measurement in virtue of different presets checks everywhere at the very first sight. Measurement Presets: Center Spot, Hot Spot, Cold Spot, Off.

Wi-Fi Connectivity

Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share your images.

Innovative Macro Mode

Using a clip-on macro lens, the B series cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.

High Temperature Alarm

Built-in speaker and flash light give the operator audio and visual alerts to high temperatures.

Fast Image Frequency

25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.

3.2'' Color LCD

3.2'' LCD provides a 75% larger screen than other products in the category.

HIKMICRO Analyzer Software

Included software offers flexble ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.

Product Model

B10

B1L

B20

B2L

Infrared Image

IR Resolution

256 × 192 (49,152 pixels)

160 × 120 (19,200 pixels)

256 × 192 (49,152 pixels)

NETD

< 40 mK (@ 25 °C, F#=1.0)

Image Frequency

25 Hz

Detector Pitch

12 μm

17 μm

12 μm

Spectral Range

7.5 to 14 μm

Focal Length

3.6 mm

3.5 mm

3.6 mm

F-number

F1.0

F1.1

F1.0

Field of View (FOV)

37.2° × 50.0°

32.9° × 44.4°

37.2° × 50.0°

Spatial Resolution (IFOV)

3.3 mrad

4.85 mrad

3.3 mrad

Focus Mode

Focus Free

We can offer kinds of handheld thermal imaging camera for sale, if you are interested, please leave us a message.

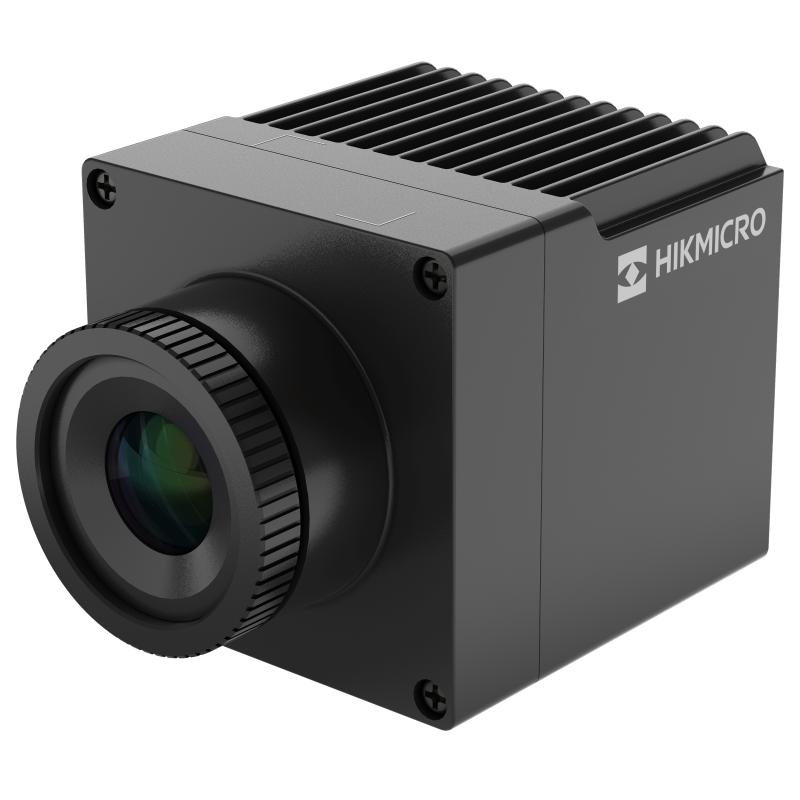

Box Cameras

Specifications of HIKMICRO Box Camera

Product Model

HM-TD2037T-4/X

HM-TD2037T-7/X

HM-TD2037T-10/X

HM-TD2037T-25/X

HM-TD2067T-6/X

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Pixel Pitch

17 μm

NETD

< 35 mK (25 °C, F# = 1.0)

IFOV

3.78 mrad

2.62 mrad

1.75 mrad

1.13 mrad

0.68 mrad

Field of View

90° × 65.2° （H x V）

60° × 44.1° （H x V）

37.5° × 28.5° （H x V）

24.3° × 18.4° （H x V）

14.8° × 11.2° （H x V）

Min. Focusing Distance

0.3 m

0.6 m

3 m

5 m

Aperture

F 1.0

Spectral Range

8 μm to 14 μm

Focal Length

4.5 mm

6.5 mm

15 mm

25 mm

Resolution

384 × 288

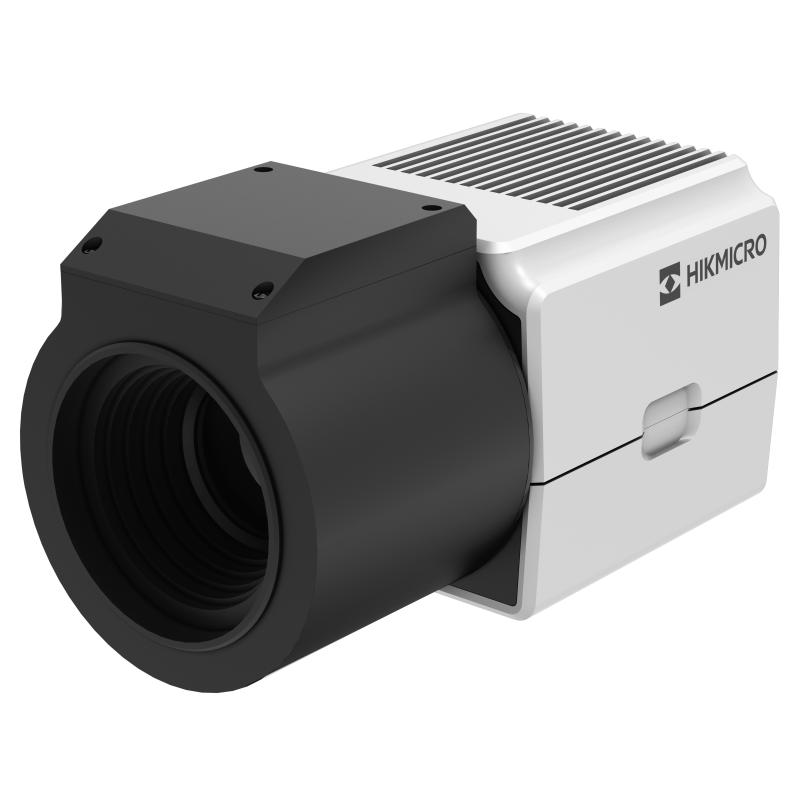

Autofocus Box Cameras

Specifications of autofocus industrial camera

Product Model

HM-TD2066T-25/V

HM-TD2036T-15/V

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Pixel Pitch

17 μm

NETD

Less than 40 mK (25 °C, F# = 1.0)

Less than 40 mK (@25 °C, F# = 1.0)

Focus Mode

Auto, Manual, Semi-auto. Support Regional Focus

IFOV

0.68 mrad

1.13 mrad

Field of View

25° × 19° （H x V）

Min. Focusing Distance

0.5 m

Aperture

F 1.0

Spectral Range

8 μm to 14 μm

Focal Length

25 mm

15 mm

Resolution

640 × 512

Measurement and Analysis

Object Temperature Range

-20°C to 150°C (-4°F to 302°F), 0°C to 550 °C (32°F to 1022°F)

-20°C to 150°C (-4°F to 302°F), 0°C to 550°C (32°F to 1022°F)

Measurement Presets

Hot spot, cold spot in real time

Point

10 User Presets

Line

1 User Presets

Area

10 User Presets

Color Alarm (Isotherm)

Above/Between/Below

Temperature Accuracy

Max. (± 2°C, ± 2%)

Now the price of af camera is low, if you have needs, please contact us.

New Product Launch

Handheld

HIKMICRO offers a range of solutions for building diagnostics, electrical, industrial, mechanical/automotive, HVAC, and Utility applications.

Fixed

Automation/Continuous Monitoring Thermal and visible continuous duty industrial solutions.

Software

Three softwares, including HIKMICRO Analyzer for PC, HIKMICRO Studio for PC, and HIKMICRO Viewer App for smartphone.

Accessories

Optional accessories for industrial handheld cameras.
